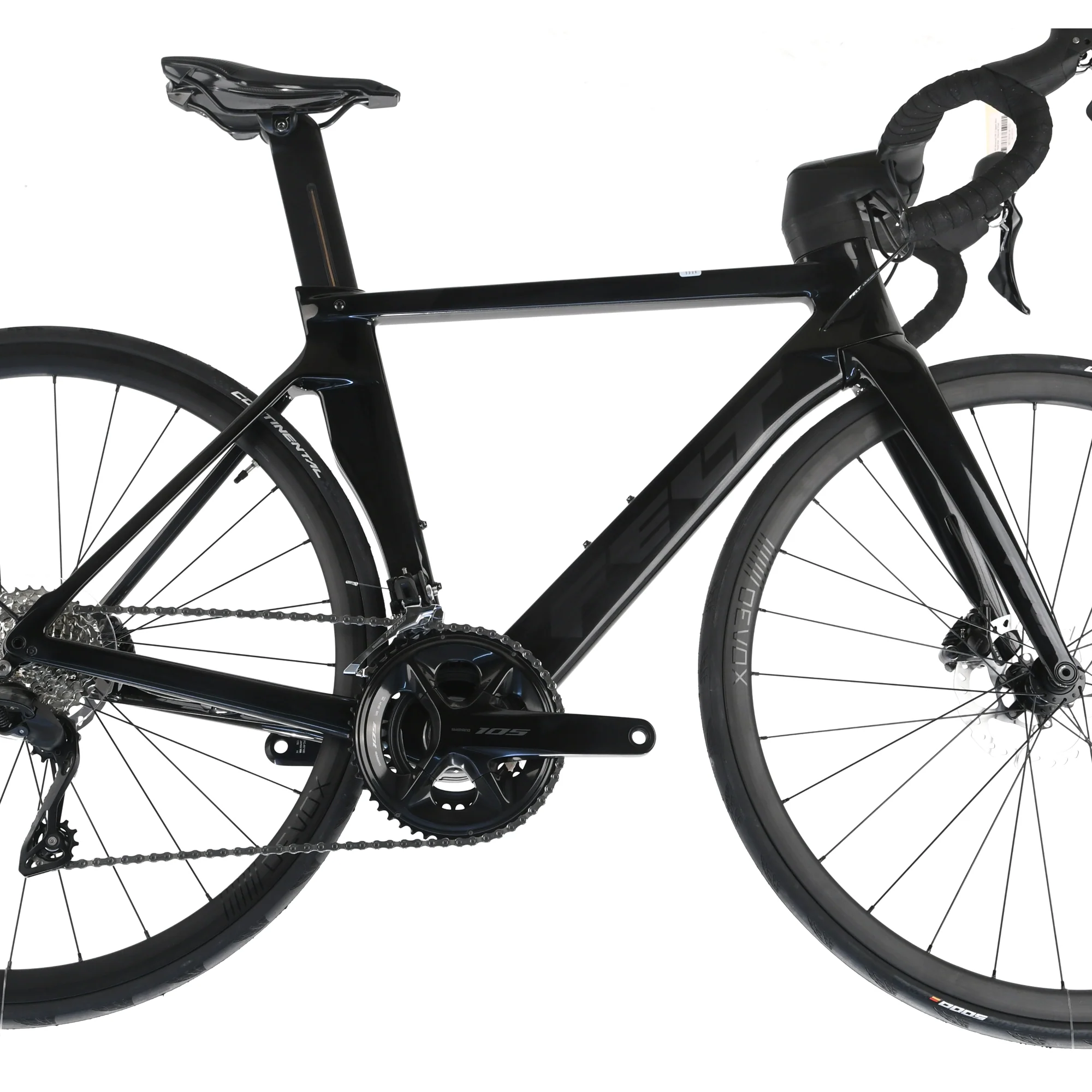

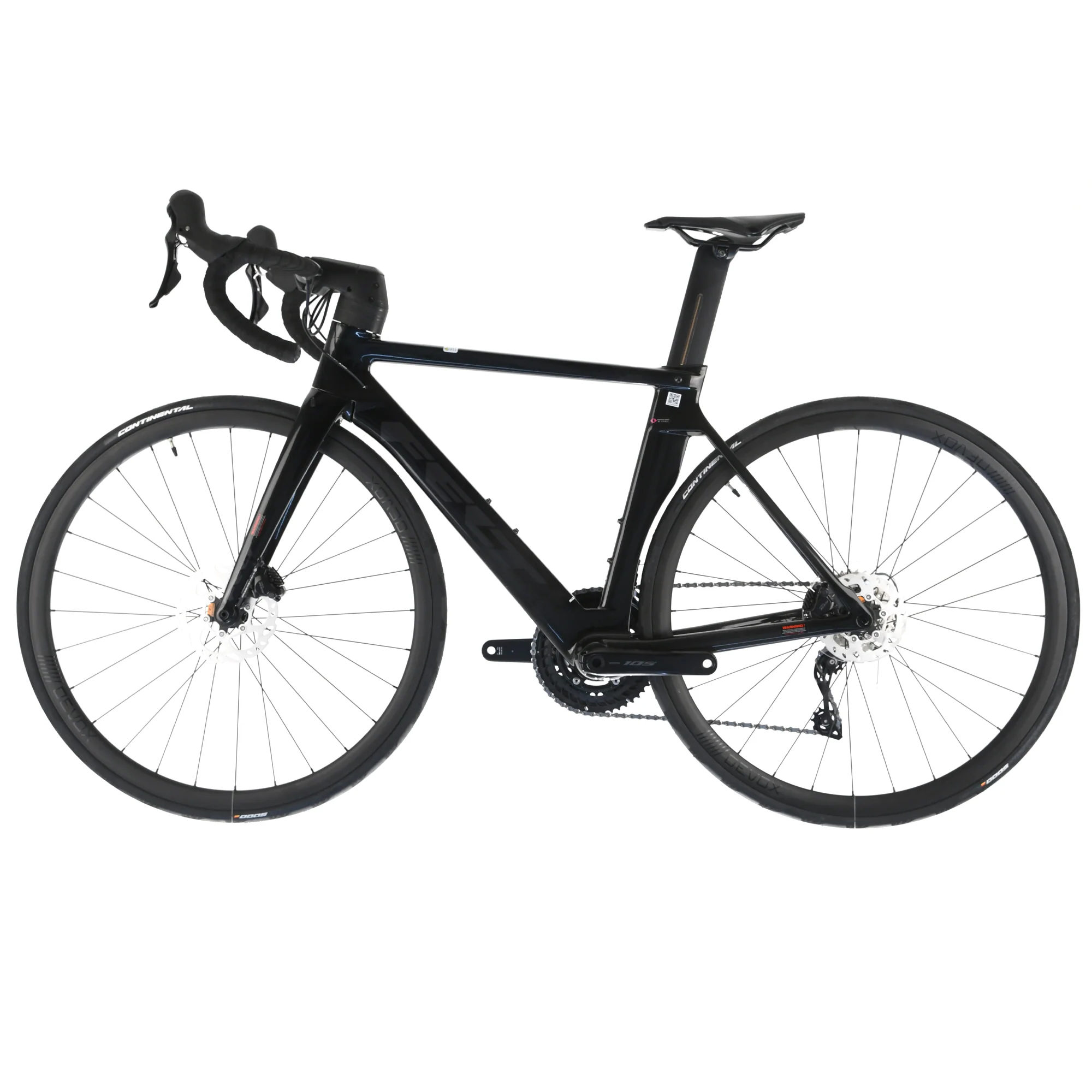

Felt AR Advanced Disc | Carbon Aero Road Bike | Shimano 105 Mechanical 2 x 12-Speed | Charcoal

Felt AR Advanced | 105 Mechanical | Carbon Aero Road Bike | Charcoal

---

Short Description

Race-proven aero speed at the perfect price point. The Felt AR Advanced pairs a pro-level UHC Advanced carbon frameset with Shimano 105 12-speed mechanical shifting and hydraulic disc brakes for a fast, dependable, upgrade-ready race bike you can ride hard every day.

---

Product Description

The Felt AR Advanced | 105 is built for riders who want a true aero road bike feel without jumping into top-tier electronic pricing. This is the Advanced-level carbon AR frameset designed for the rigors of real racing, paired with Shimano’s tried-and-true 105 mechanical drivetrain for clean, reliable shifting and easy serviceability.

The AR platform is all about turning watts into speed. You get a modern race geometry, a tidy semi-integrated cockpit that’s easy to dial in, and a build kit that’s ready for everything from fast group rides to fondos and your first race season. Finished in Charcoal, this is a sharp, stealthy race look that fits the bike’s purpose.

Why this one is going to be a hot seller

• True carbon aero race platform at a price point that makes sense

• Shimano 105 12-speed mechanical: dependable performance, simple maintenance

• Hydraulic disc braking for confident control in all conditions

• Devox wheelset + Continental tires: training and race-ready right out of the box

• A solid frame with room to upgrade over time (wheels, cockpit, drivetrain, etc.)

---

Key Features

• UHC Advanced carbon Felt AR 3.0 frameset built for speed and race-day abuse

• Shimano 105 12-speed mechanical shifting for crisp performance and easy service

• Shimano 105 hydraulic disc brakes with 160mm rotors front/rear for modern stopping power

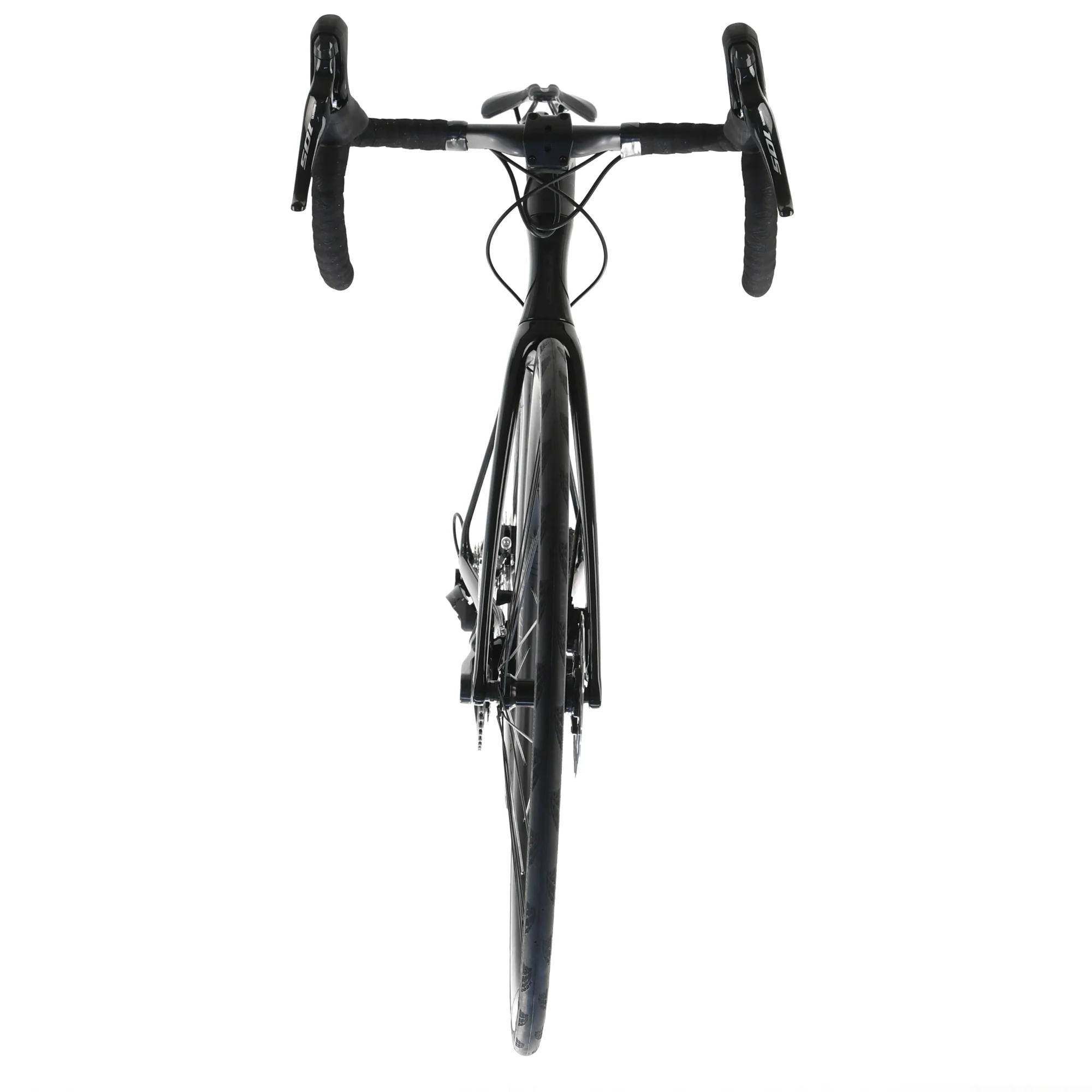

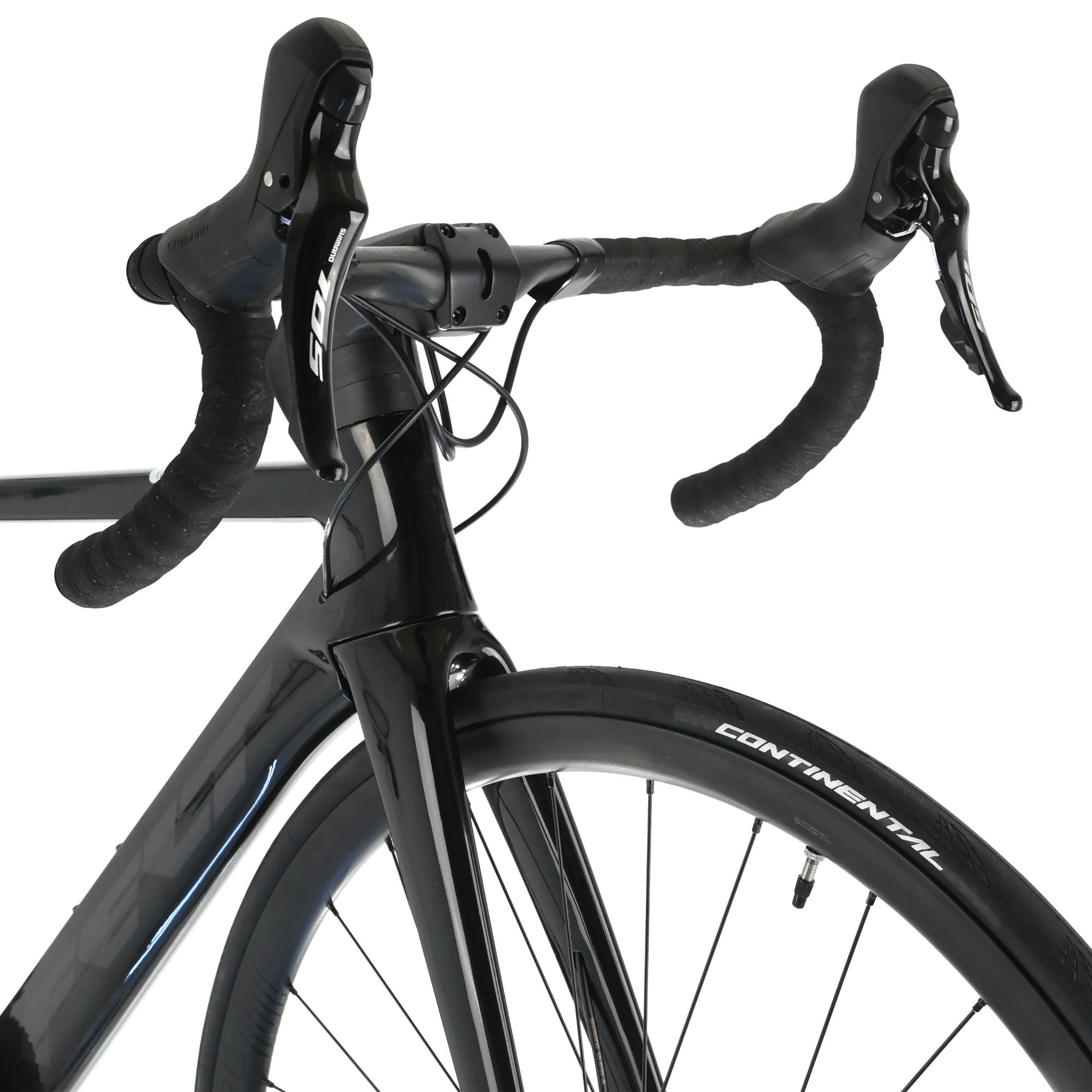

• Semi-integrated front end keeps the look clean while staying adjustable and service-friendly

• Devox Aluminum wheelset with Shimano RS470 CenterLock hubs

• Continental Grand Sport Race SL tires for fast road feel and durability

---

Product Specifications

Frameset

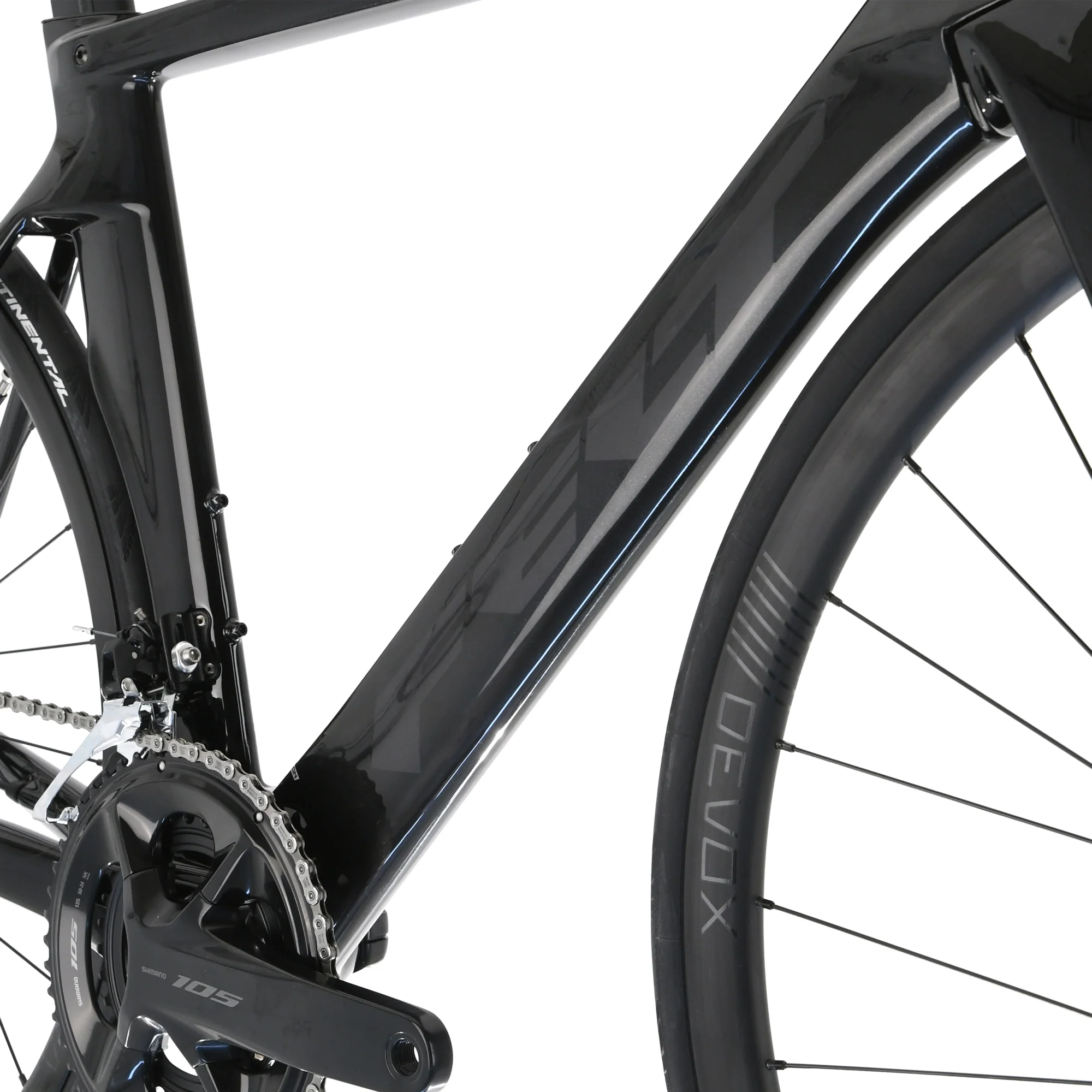

• Frame: Felt AR 3.0, UHC Advanced carbon

• Fork: Felt AR 3.0, UHC Advanced carbon

Brakes and Drivetrain

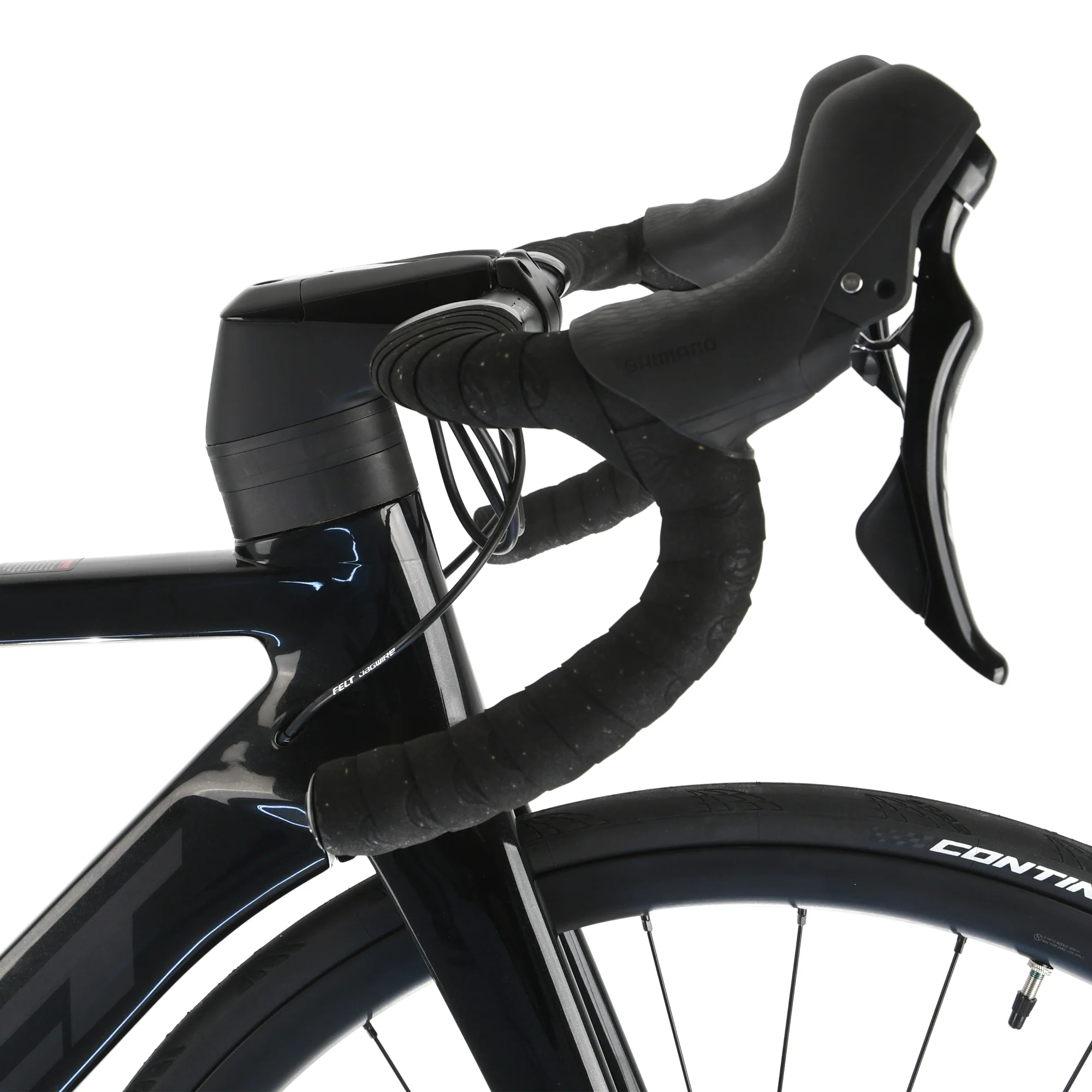

• Shifters / Brake Levers: Shimano 105 ST-R7120

• Front Derailleur: Shimano 105 FD-R7100, Brazed-On

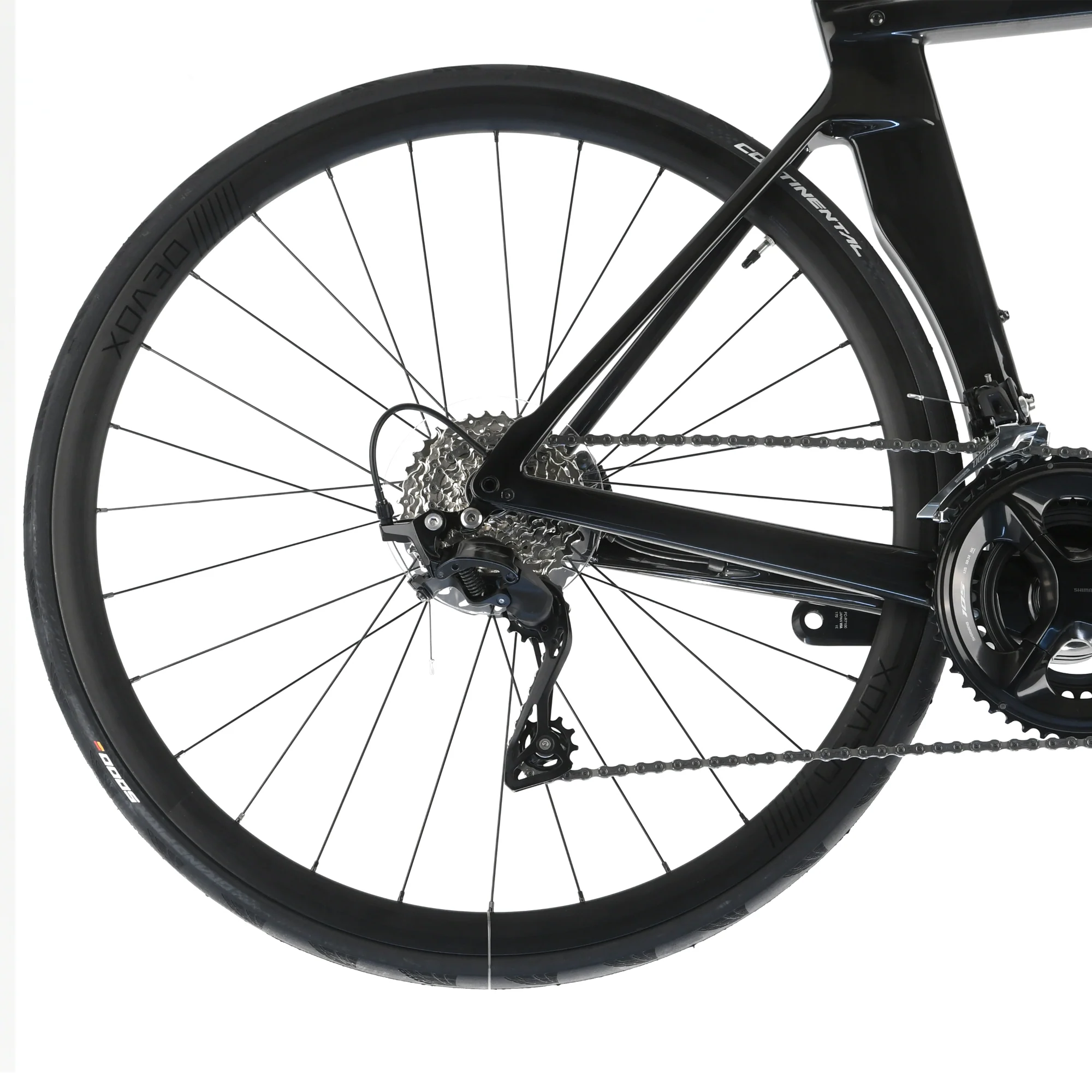

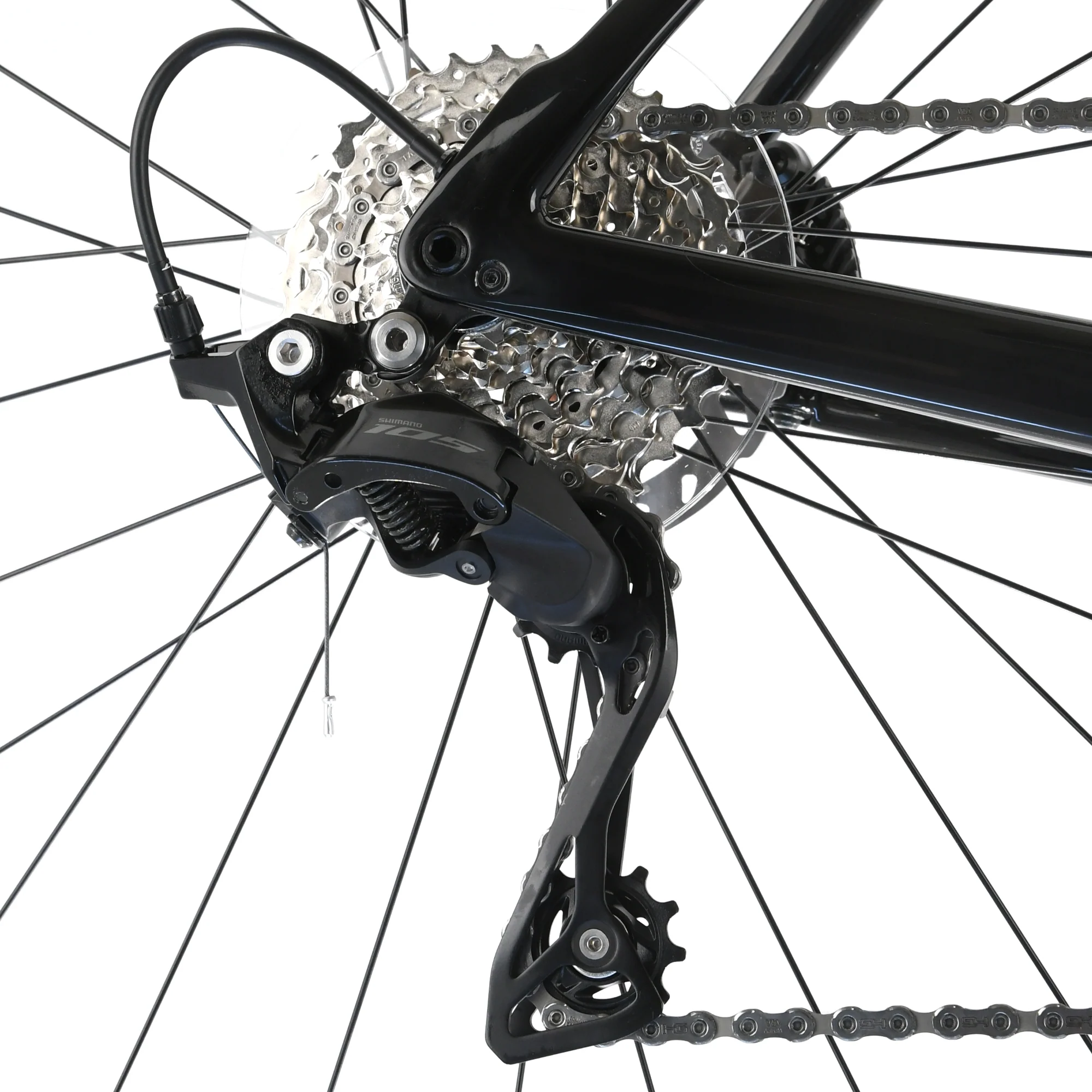

• Rear Derailleur: Shimano 105 RD-R7100, short cage

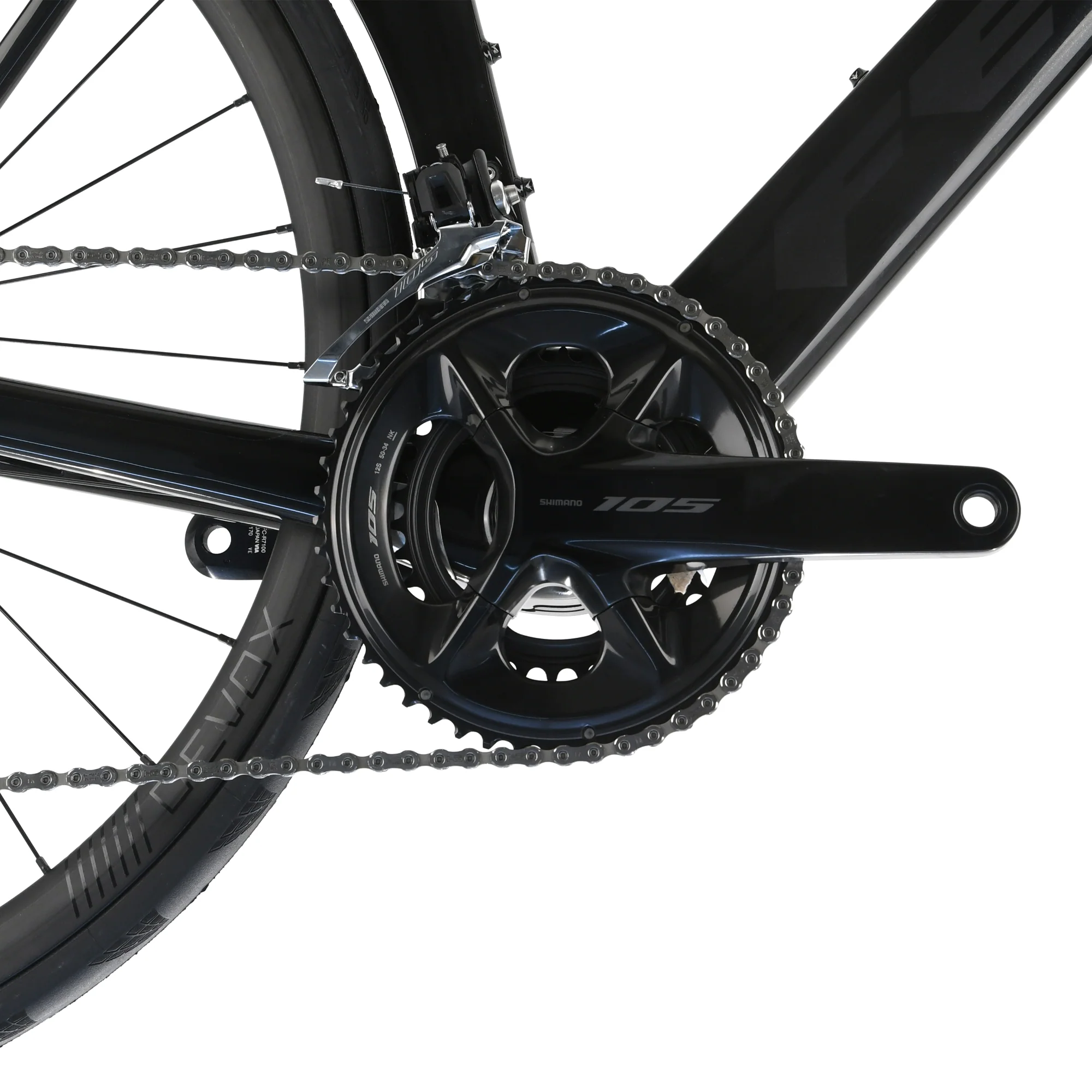

• Crankset: Shimano 105 FC-R7100, 50/34T

• Cassette: Shimano 105 CS-R7100, 11-34T

• Chain: Shimano CN-HG7100

• Brakes: Shimano BR-R7170, 2-piston hydraulic disc

• Rotors: Shimano SM-RT70, 160mm front / 160mm rear, CenterLock

Wheels and Tires

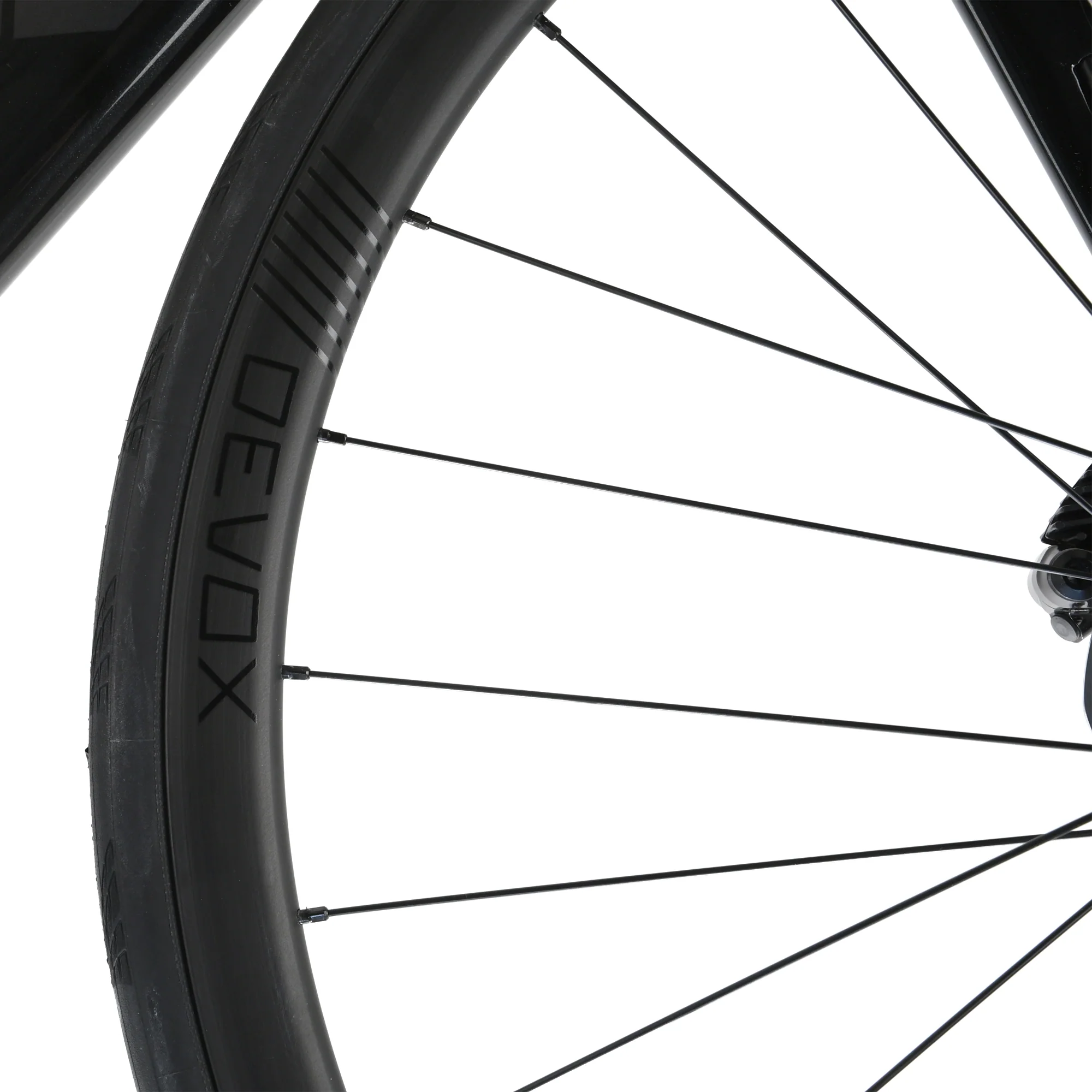

• Wheelset: Devox Aluminum, CenterLock, 12x100 front / 12x142 rear, thru axle

• Front Wheel: Alex Aluminum rim  / Shimano HB-RS470-CL hub

• Rear Wheel: Alex Aluminum rim  / Shimano FH-RS470-CL hub

• Tires: Continental Grand Sport Race SL, 700x25c

Cockpit and Seating

• Handlebar: Devox Aero, 31.8mm

  • 48cm & 51cm: 400mm bar

  • 54cm, 56cm, 58cm, 61cm: 420mm bar

• Stem: Felt Sprint, -6°

• Headset: IS

• Bar Tape: Felt VelvetGel with 3M reflective base + Felt Bubble-Tech F-Wing plugs

• Saddle: Prologo Dimension 143 STN

• Seatpost: Felt AeroRoad IL 2.0, 350mm

Weight

•  51cm weight: 20.9 lb

• We do not have verified weights for every size, and weights may vary by size and production.

---

Size Variations

This product is a multi-variation listing with a full size run in Charcoal:

Sizes:  48, 51, 54, 56, 58, 61

---

Rider Size Guide

Use this as a starting point and confirm fit with your preferred fitter or local shop.

Size	Rider Height	Inseam
43	4'9"–5'0" (144.7–152.4cm)	26.5"–28.0" (67.3–71.2cm)
45	4'9"–5'0" (144.7–152.4cm)	26.5"–28.0" (67.3–71.2cm)
47	5'0"–5'5" (152.4–167.6cm)	28.0"–29.5" (71.2–74.9cm)
48	5'0"–5'5" (152.4–167.6cm)	28.0"–29.5" (71.2–74.9cm)
51	5'5"–5'8" (167.6–172.7cm)	29.6"–30.0" (75.1–76.2cm)
54	5'8"–5'10" (172.7–177.8cm)	30.7"–32.3" (77.9–82.0cm)
56	5'10"–6'0" (177.8–182.8cm)	31.9"–33.5" (81.0–85.0cm)
58	6'0"–6'2" (182.8–187.9cm)	33.1"–34.3" (84.0–87.1cm)
61	6'2"–6'5" (187.9–195.5cm)	34.4"–35.9" (87.3–91.1cm)

---

Geometry Snapshot

(Provided chart coverage shown for 48–61)

Size	Stack	Reach	Top Tube	Head Tube	Seat Tube
48	501	370	509	97	441
51	518	381	529	111	473
54	539	383	543	130	502.5
56	561	394	560	150	526
58	579	408	580	167	553
61	608	419	605	197.5	601

---

Perfect For

• Riders buying their first performance road bike and wanting a true “race bike” feel

• Fast group rides, fondos, and first races

• Anyone who wants aero speed with modern comfort and dependable components

• Riders who want a strong frame now with a clear upgrade path later



  Important Information

• Bought direct from Felt

• Ships in a factory box

• Professional assembly is required due to the complexity of the aero front end and internal routing. An experienced road shop is strongly recommended.

• Full Felt warranty applies when assembled by a brick-and-mortar bike shop. Keep your receipt for warranty support.

• Max tire size is 28c (verify tire clearance based on tire model and rim width)
