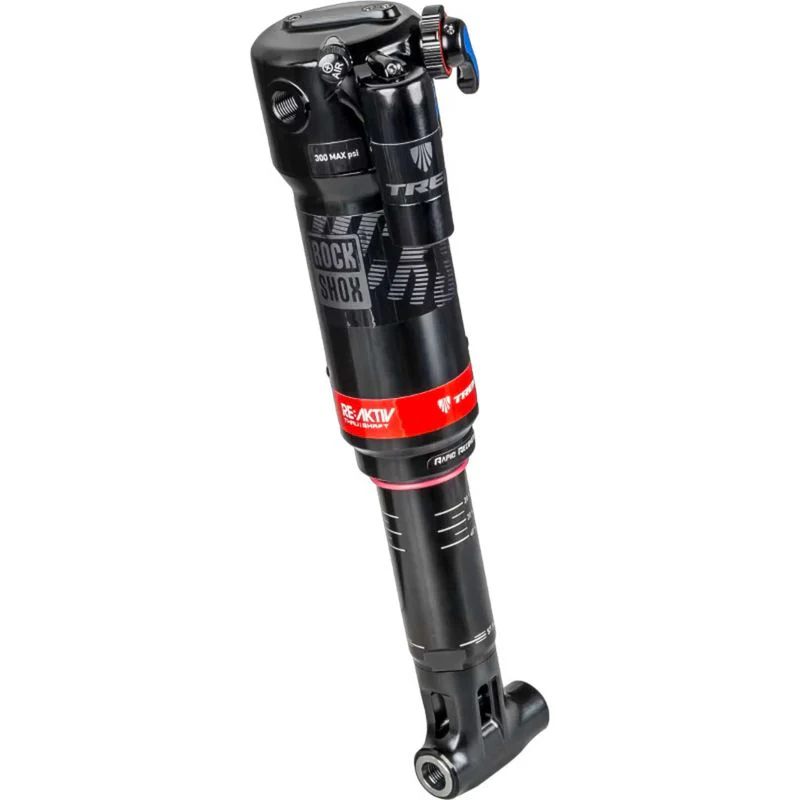

RockShox Deluxe Re:Aktiv Thru Shaft 230 x 57.5mm Shock

A genuine RockShox replacement shock with Re:Aktiv Thru Shaft damping, tuned for ultra-responsive trail performance. Get the right shock in the right tune for your frame and riding style.

Highlights

• External rebound adjustment for quick on-trail tuning
• 3-position compression damping: Open / Pedal / Firm
• Ultra-responsive Re:Aktiv Thru Shaft damper
• Air spring for light weight and easy setup

Specs

Size	230 x 57.5 mm
Eye to Eye	230 mm
Stroke	57.5 mm
Spring Type	Air
Remote	No
Upper Width	54 mm
Lower Width	50 mm with offset
Upper Hardware Ø	10 mm
Upper Mount	Trunnion
Lower Hardware Ø	10 mm
Lower Mount	Trunnion

Compatibility

• Frames designed for a 230 x 57.5 mm shock with trunnion upper and lower mounts
• Requires 10 mm hardware (54 mm upper, 50 mm offset lower)

In the Box

• RockShox Deluxe Re:Aktiv Thru Shaft shock (230 x 57.5 mm)

Install & Care

• Set sag and rebound according to rider weight and preference
• Follow manufacturer torque specs and service intervals
• Periodic air can service recommended for optimal performance

Notes

Model- and tune-specific fit varies by frame. Verify eye-to-eye, stroke, mounting type, and hardware dimensions before purchase.
